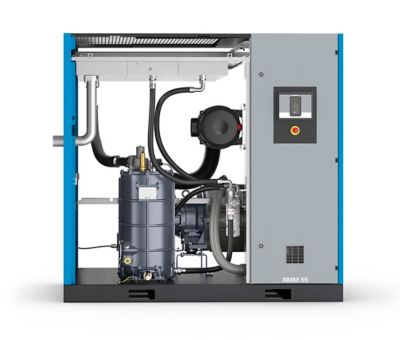

Your production relies on compressed air, so you know the value of a compressor you can always count on. The RMM was built to be your no-hassle, zero-frustration work floor companion. While typically compressors in this segment are belt-driven, our newest oil-injected rotary screw compressor comes with a direct gear transmission. That means no belts to tension, maintain and replace. The RMM also features an advanced controller with integrated connectivity to easily manage and monitor your compressed air system. The result: reliability, ease-of-use and limited maintenance from the very first moment you commission your new RMM.
A belt-driven compressor has a higher risk of downtime and maintenance- related costs. Unscheduled belt tensioning and replacement cause productivity losses and there is always the risk of post-service belt misalignment. That is why the RMM comes with a gear drive transmission. You have no belts to replace and enjoy lower operating (service) costs. What is more, the RMM is 3% more energy efficient compared to belt-driven compressors.
Compressor type |
Maximum working pressure |
Capacity FAD |
Motor power |
Noise level
|
|||
|
Bar |
m3/h |
l/s |
cfm |
kW |
hp |
dB(A) |
RMM 30 |
7.5 |
320 |
89 |
189 |
30 |
40 |
71.5 |
8.5 |
310 |
86 |
182 |
30 | 40 | 71.5 | |
10 | 274 | 76 | 161 | 30 | 40 | 71.5 | |
RMM 37
|
7.5 |
396 |
110 |
233 |
37 | 50 |
73 |
8.5 |
365 |
102 |
215 |
37 | 50 | 73 | |
10 | 342 | 95 | 201 | 37 | 50 | 73 | |
RMM 45 | 7.5 | 454 | 126 | 267 | 45 | 60 | 74.5 |
8.5 | 436 | 121 | 256 | 45 | 60 | 74.5 | |
10 | 400 | 111 | 235 | 45 | 60 | 74.5 | |
RMM 55 | 7.5 | 617 | 172 | 363 | 55 | 75 | 71 |
8.5 | 581 | 161 | 342 | 55 | 75 | 71 | |
10 | 521 | 145 | 307 | 55 | 75 | 70 | |
RMM 75 | 7.5 | 793 | 220 | 467 | 75 | 100 | 73 |
8.5 | 768 | 213 | 452 | 75 | 100 | 72 | |
10 | 711 | 197 | 418 | 75 | 100 | 73 | |
RMM 90 | 7.5 | 970 | 270 | 571 | 90 | 120 | 71 |
8.5 | 923 | 256 | 543 | 90 | 120 | 71 | |
10 | 852 | 237 | 501 | 90 | 120 | 71 |
Compressor type |
Maximum working pressure |
Capacity FAD |
Motor power |
Noise level
|
||||||||||
|
Bar |
m3/h |
l/s |
cfm |
kW |
hp |
dB(A) |
|||||||
min | max. | 7 bar | 8 bar | 9,5 bar | 7 bar | 8 bar | 9,5 bar | 7 bar | 8 bar | 9,5 bar | ||||
RMM 30 IVR |
4 | 10 | 318 | 306 | 274 | 88 |
85 | 76 | 187 |
180 | 161 | 30 |
40 |
71.5 |
RMM 37 IVR
|
4 |
10 | 401 |
370 | 343 | 111 |
103 | 95 | 236 |
218 | 202 | 37 | 50 |
73 |
RMM 45 IVR | 4 | 10 | 447 | 434 | 404 | 124 | 121 | 112 | 263 | 255 | 238 | 45 | 60 | 74.5 |
RMM 55 IVR | 4 | 10 | 645 | - | 579 | 179 | - | 161 | 380 | - | 341 | 55 | 75 | 73* |
RMM 75 IVR | 4 | 10 | 772 | - | 714 | 214 | - | 198 | 454 | - | 420 | 75 | 100 | 74* |
RMM 90 IVR | 4 | 10 | 1041 | - | 914 | 289 | - | 254 | 613 | - | 538 | 90 | 120 | 72 |
With the RMM, we set out to build the better, more reliable compressor on the market. The compressor offers some major innovations that will you give a lifetime of value and savings.
Simple installation, easy to use
• Plug-and-play installation
• No special foundation required
• Small footprint
• Ready-to-use, integrated dryer
• Intuitive controller
Increased productivity, reliable operations
• No downtime for belt tensioning or replacement
• Quiet and smooth gear transmission
• Low noise level
• High-capacity oil/air coolers and perfect air filtration ensure a long lifetime
• Unbeatable performance with heavy-duty IP55 or IP66 motors
Less maintenance, no-hassle service
• Easy access to service components
• Quick oil level check through front panel gauge
• Service becomes a one-person job
• Service plans tailored to your needs
Connectivity for performance and reliability
• Remote connectivity, anywhere, any time
• Notifications and shutdown alarms eliminate risk of downtime
• Increased reliability with planned service interventions
• Cost optimization advice
Advanced cost savings
• 3% savings versus traditional belt-driven transmissions
• IE3 motor as standard
• Variable Speed version available for 35% energy savings
