Screw compressors

MSU 21-40 Series

The MSU 21–40 range offers powerful, reliable screw compressors for small and medium industries. Built for continuous duty with oversized cooling, robust components and optional integrated dryer and filters, these units deliver clean air, low noise and consistent performance.

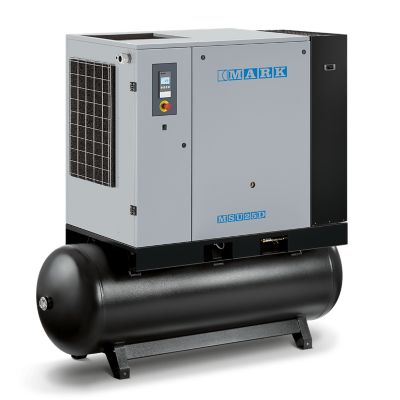

MSU-RMU_Mark_usa_S67-C80_Belt_tank_mounted_dryer_3quarter_left-min_squared

Industrial Power

Designed for demanding environments, MSU 21–40 units run continuous duty with durable screw elements and first‑class components.

Cooling Efficiency

Oversized ventilation maintains low internal temperatures, extending component life and ensuring stable operation in tough conditions.

Clean Air System

Optional integrated dryer and filters deliver dry, high‑quality air suitable for sensitive tools and applications requiring purity.

Key features of the MSU 21–40 heavy‑duty screw compressor range

The MSU 21–40 range is engineered for workshops and industries requiring continuous, high‑quality compressed air. These belt‑driven screw compressors can be installed floor‑mounted or on air receivers, with optional dryer and filter packages creating a compact, complete air system. Their robust screw elements, reliable components and generous cooling capacity allow them to operate at high ambient temperatures and challenging loads without sacrificing performance or durability.

Noise and vibration remain low, enabling installation close to working areas. Service points are placed at the front for quick access, with a visible oil level sight glass simplifying checks. Intelligent controls, including an electronic controller and optional integrated dryer drain, support reliable monitoring. Together with efficient IE3 motors and long service intervals, these compressors offer dependable operation and optimized energy use for medium‑duty industrial air requirements.

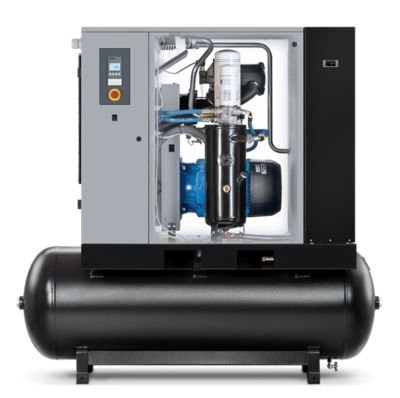

MSU-RMU_Mark_usa_S67-C80_Belt_TM_dryer_front_ghost-min

MSU 21–40 units feature efficient rotary screw elements and IE3 motors delivering strong airflow for industrial needs. They operate reliably under continuous duty and high ambient temperatures, and are available floor‑ or tank‑mounted with optional integrated air treatment for cleaner output.

Front‑mounted components, including filters and the oil sight glass, ensure fast, simple servicing. The electronic controller supports maintenance planning, showing warnings and operating data to keep performance stable and reduce downtime in daily industrial use.

Efficient screw technology and strong cooling reduce energy consumption while protecting components for long service life. Compact installation options lower piping losses and simplify setup, while integrated dryer packages reduce leakage risks and enhance total air system efficiency.

Technical informations

Model Pressure Flow Motor Power Noise Level
**
Weight (lbs.)
PSI cfm HP dB(A) Base Mounted Tank Mounted Tank Mounted w/ Dryer
MSU 21 116 78.6 20 69 690 1184 1296
145 74.2
MSU 25 116 93.7 25 70 723 1202 1329
145 89.4
MSU 30 116 112.7 30 71 758 1237 1365
145 99.4
MSU 40 125 154.9 40 71 979 N/A N/A
150 132.9

* Unit performance measured according to ISO 1217, Annex C, latest edition
** Noise level measured according to ISO 2151:2004 using ISO 9614/2

MSU 21-40 Series

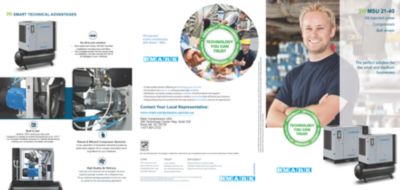

Product Brochure & Downloads
