The bstAIR 300 series delivers exceptional performance for high-pressure applications. Models range from 7 to 20 HP with power ratings between 5.5 and 15 kW. Each unit achieves an operational pressure of 300 bar, ensuring consistent output even under demanding conditions. Free air delivery spans from 475 to 830 l/min, providing ample capacity for industrial processes. Despite its power, the design remains compact at 1480x830x1520 mm, with weights from 380 to 455 kg for stability and easy installation. Noise levels are impressively low at 70–74 dB(A), guaranteeing a quieter work environment without compromising efficiency.
Advanced design for maximum reliability and efficiency
The bstAIR 300 series is engineered for continuous operation in high-pressure environments, delivering air or nitrogen up to 300 bar. Each unit integrates intercoolers, water separators, and a purification system to guarantee clean output. The easy-to-use graphic controller simplifies monitoring and control, while the automatic condensate drain enhances convenience.
Energy efficiency is at the heart of the design, featuring an IP55-protected IE3 motor and highly efficient multistage pumps. Combined with a soundproof canopy and vibration-reducing components, the bstAIR 300 ensures quiet, reliable performance. Available in multiple power ratings, it offers flexibility for diverse industrial needs.
Routine maintenance is simplified with easy access to key components and an intuitive graphic controller. The integrated purification system and automatic condensate drain reduce manual intervention, while robust intercoolers and water separators extend service life. Scheduled checks ensure optimal performance and prevent downtime.
Technical informations
| Model | Power | Intake pressure | Max. operational pressure |
Free Air Delivery | Stages | Pump speed | Noise level, Lp(A) |
||
|---|---|---|---|---|---|---|---|---|---|
| HP | kW | bar | bar | l/min | m3/h | # | RPM | dB(A) | |
| BSTAIR 7-300 | 7 | 5.5 | 5-11 | 300 | 475 | 28.5 | 2 | 1230 | 70 |
| BSTAIR 10-300 | 10 | 7.5 | 7-10 | 300 | 645 | 38.7 | 2 | 850 | 71 |
| BSTAIR 15-300 | 15 | 11 | 7-10 | 300 | 750 | 45.0 | 2 | 1140 | 73 |
| BSTAIR 20-300 | 20 | 15 | 2-4 | 300 | 830 | 49.8 | 3 | 1530 | 74 |
BstAIR 300 Series

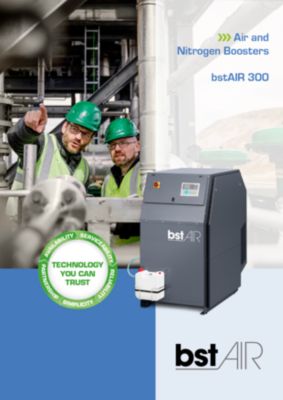

Product Brochure & Downloads
