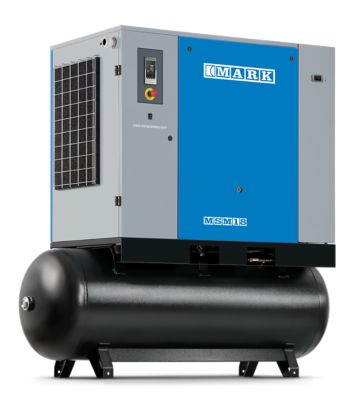

MSM compressors deliver Free Air Delivery from 20 m³/h to 260 m³/h depending on model, at pressures up to 13 bar. Motor power ranges from 2.2 to 30 kW, with noise levels between 61 and 71 dB(A). Tank-mounted options include 200L, 270L, and 500L variants. All units comply with ISO1217 and ISO2151 standards for performance and noise.
Key features of MSM compressors for workshops and small industries

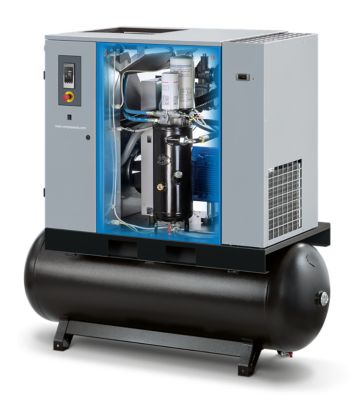

The MSM Series combines simplicity, reliability, and efficiency for small to medium businesses. Ranging from 2.2 to 30 kW, these belt-driven rotary screw compressors deliver continuous operation without cool-down periods. Integrated options such as dryers and receivers save space and reduce installation costs.
Noise levels as low as 61 dB(A) allow installation near the point of use. Oversized ventilation ensures low internal temperatures for longer life. The ES4000 controller provides intuitive operation and connectivity, while robust design supports demanding conditions up to 46°C ambient temperature.
Routine service is simplified with front-facing components and clear oil-level sight glass. Long service intervals and easy access reduce downtime. Using original parts ensures reliability and efficiency. ES4000 controllers provide maintenance alerts, while optional service kits cover 4,000H and 8,000H intervals for peace of mind.
Technical informations
- MSM 2.2-7
- MSM 5.5-15
- MSM 18-30
| Model | Max. working pressure | Reference working pressure | Free Air Delivery @ reference conditions* | Motor power | Noise level ** | |||
|---|---|---|---|---|---|---|---|---|
| Bar | Bar | m3/h | l/min | cfm | kW | hp | db(A) | |
| MSM 2.2 | 8 10 |
7.5 9.5 |
20.6 16.9 |
343 281 |
12.1 9.9 |
2.2 | 3 | 61 |
| MSM 3 | 8 10 |
7.5 9.5 |
27.6 21.5 |
460 359 |
16.2 12.7 |
3 | 4 | 61 |
| MSM 4 | 8 10 |
7.5 9.5 |
34.7 30.1 |
578 502 |
20.4 17.7 |
4 | 5.5 | 62 |
| MSM 5.5 | 8 10 |
7.5 9.5 |
51.5 45.4 |
858 756 |
30.3 26.7 |
5.5 | 7.5 | 66 |
| MSM 7 | 8 10 |
7.5 9.5 |
61.7 57.7 |
1028 961 |
36.3 33.9 |
7.5 | 10 | 68 |
* Unit performance measured according to ISO1217, Annex C, latest edition
** Noise level measured according to ISO2151 2004
| Model | Max. working pressure | Free Air Delivery @ reference conditions* | Motor power | Noise level ** | |||
|---|---|---|---|---|---|---|---|
| bar | m3/h | l/s | cfm | kW | hp | dB(A) | |
| MSM 5.5 | 8 | 50,8 | 14,1 | 29,9 | 5,5 | 7,5 | 64 |
| 10 | 41,8 | 11,6 | 24,6 | ||||
| MSM 7.5 | 8 | 68,4 | 19 | 40,3 | 7,5 | 10 | 65 |
| 10 | 59,8 | 16,6 | 35,2 | ||||
| 13 | 46,8 | 13 | 27,5 | ||||
| MSM 11 | 8 | 97,2 | 27 | 57,2 | 11 | 15 | 69 |
| 10 | 85 | 23,6 | 50 | ||||
| 13 | 69,1 | 19,2 | 40,7 | ||||
| MSM 15 | 8 | 111,6 | 31 | 65,7 | 15 | 20 | 71 |
| 10 | 100,8 | 28 | 59,3 | ||||
| 13 | 79,9 | 22,2 | 47 | ||||
* Unit performance measured according to ISO 1217, Annex C, latest edition
** Noise level measured according to ISO 2151:2004 using ISO 9614/2
| Model | Max. working pressure | Free Air Delivery @ reference conditions* | Motor power | Noise Level** | |||
|---|---|---|---|---|---|---|---|
| Bar | m3/h | l/s | cfm | kW | hp | db(A) | |
| MSM 18 | 8 | 188 | 52,1 | 110 | 18,5 | 25 | 69 |
| 10 | 162 | 45 | 95 | ||||
| 13 | 139 | 38,5 | 82 | ||||
| MSM 22 | 8 | 223 | 62 | 131 | 22 | 30 | 70 |
| 10 | 193 | 53,6 | 114 | ||||
| 13 | 167 | 46,4 | 98 | ||||
| MSM 30 | 8 | 260 | 72,2 | 153 | 30 | 40 | 71 |
| 10 | 234 | 65,1 | 138 | ||||
| 13 | 206 | 57,2 | 121 | ||||
* Unit performance measured according to ISO 1217, Annex C, latest edition
** Noise level measured according to ISO 2151:2004 using ISO 9614/2
MSM Series

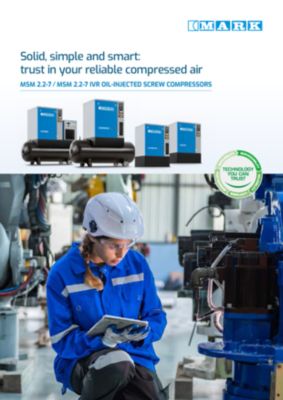

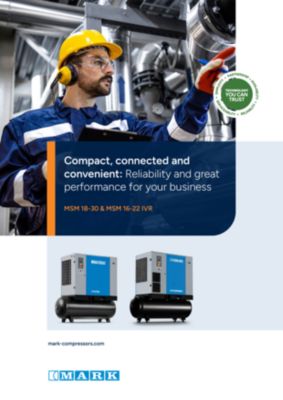

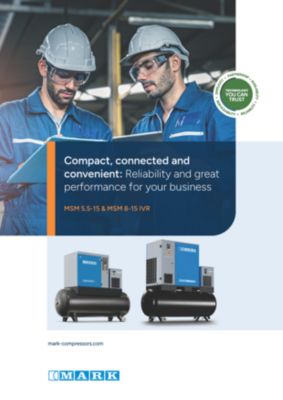

Product Brochure & Downloads
