MSM IVR PM compressors range from 8 kW to 22 kW, delivering air flows up to 4.5 m³/min at pressures between 7 and 13 bar. Equipped with IE4 permanent magnet motors and variable speed drives, they maintain high efficiency even in ambient temperatures up to 46°C.
Advanced technology for superior performance
The MSM IVR PM series is engineered to deliver unmatched efficiency and reliability across a wide range of applications. With power ratings from 2.2 kW to 30 kW, these compressors feature IE4 permanent magnet motors and intelligent variable speed control, adapting airflow to demand and minimizing energy waste.
Built with a compact footprint and integrated options such as dryers and filters, the MSM IVR PM ensures clean, dry air while saving valuable floor space. Its robust design and advanced ES4000 Connect controller provide real-time monitoring, remote access, and predictive maintenance capabilities, making it the ideal solution for modern industrial environments.
Easy-access panels and centralized service points simplify maintenance, reducing downtime and costs. Oil-injected cooling and durable components ensure long service intervals, while predictive maintenance options help prevent unexpected failures.
Technical informations
- MSM 8-15 IVR
- MSM 16-22 IVR
| Model | Min Working Pressure | Reference Working Pressure | Motor Power | Min. FAD* | Free Air Delivery @ reference conditions * Max. FAD* |
Noise level ** | Cooling air flow | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| bar | bar | kw | hp | 7 bar | 7 bar | 9.5 bar | dB(A) | m3/s | ||||
| m3/h | l/s | m3/h | l/s | m3/h | l/s | |||||||
| MSM 8 IVR | 4 | 10 | 7,5 | 10 | 21,2 | 5,2 | 73,4 | 20,4 | 63,4 | 17,6 | 64 | 0,61 |

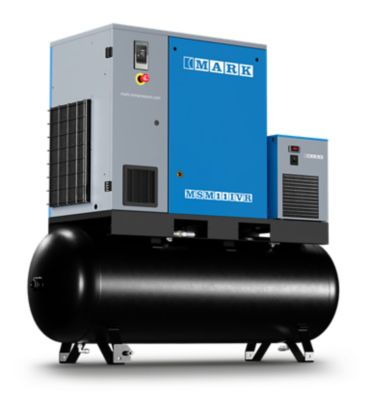

| MSM 11 IVR | 4 | 10 | 11 | 15 | 18,4 | 5,1 | 109,4 | 30,4 | 88,2 | 24,5 | 65 | 0,61 |
| MSM 15 IVR | 4 | 10 | 15 | 20 | 19,4 | 5,4 | 120,6 | 33,5 | 111,6 | 31 | 66 | 0,61 |
* Unit performance measured according to ISO 1217, Annex C, latest edition
** Noise level measured according to ISO 2151:2004 using ISO 9614/2
| Model | Min Working Pressure | Reference Working Pressure | Motor Power | Min. FAD* | Free Air Delivery @ reference conditions * Max. FAD* | Noise level ** | Cooling air flow | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| bar | bar | kw | hp | 7 bar | 7 bar | 9.5 bar | dB(A) | m3/s | ||||
| m3/h | l/s | m3/h | l/s | m3/h | l/s | |||||||
| MSM 16 IVR | 4 | 10 | 15 | 20 | 34,2 | 13 | 171 | 47,5 | 146,2 | 40,6 | 67 | 0,69 |

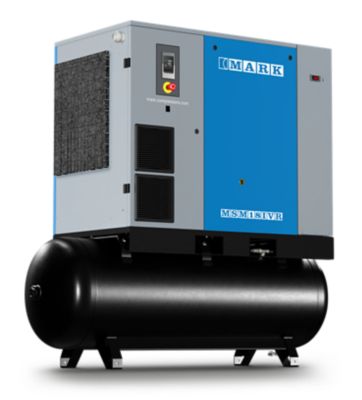

| MSM 18 IVR | 4 | 10 | 18,5 | 25 | 32,8 | 9,1 | 200,2 | 55,6 | 172,4 | 47,9 | 69 | 0,97 |
| MSM 22 IVR | 4 | 10 | 22 | 30 | 37,8 | 10,5 | 229,7 | 63,8 | 194,8 | 54,1 | 71 | 0,97 |
* Unit performance measured according to ISO 1217, Annex C, latest edition
** Noise level measured according to ISO 2151:2004 using ISO 9614/2
