The bstAIR series covers pressure levels of 25 bar and 40 bar, with power ratings tailored to industrial needs. Each unit is engineered for high flow capacity and stable performance, ensuring precise pressure control. Compact footprints and optimized cooling systems enhance operational efficiency while minimizing downtime.
Engineered for performance and reliability

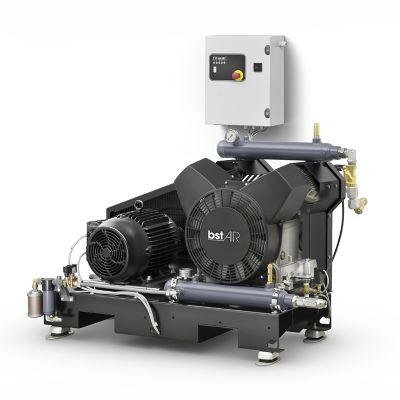

The bstAIR series is built to deliver consistent high-pressure output for critical applications such as PET blowing, laser cutting, and nitrogen boosting. With robust components and intelligent design, these boosters guarantee long-term reliability under continuous operation.
Offering both Standard and Full Feature variants, the range includes integrated options for enhanced control and air treatment. Compact dimensions and optimized cooling systems make bstAIR boosters easy to install and maintain, even in space-constrained environments.
Routine maintenance is simplified through accessible components and clear service intervals. Integrated monitoring systems help detect potential issues early, reducing unplanned stoppages. Using genuine parts and following recommended schedules ensures maximum uptime and extended equipment life.
Technical informations
| Model | Inlet pressure | Outlet pressure | Maximum FAD*@50&60HZ | Motor power | Motor speed-rpm | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| bar | psig | bar | psig | l/s | cfm | m3/hr | kW | hp | rpm | |
| LTB10-25 | 2-5 | 29-72.5 | 10-25 | 145-362.5 | 28,5 | 60 | 102 | 7,5 | 10 | 829 |
| LTB15-25 | 35.3* | 75* | 127* | 11 | 15 | 603 | ||||
| LTB20-25 | 49,8 | 105 | 179 | 15 | 20 | 888 | ||||
| LTB25-25 | 64,2 | 136 | 231 | 18,5 | 25 | 842 | ||||
| LTB3-40 | 6-10 | 87-145 | 15-40 | 217.5-580 | 9,0 | 19 | 32 | 2,2 | 3 | 3000 |
| LTB5-40 | 15,3 | 32 | 55 | 3,7 | 5 | 3000 | ||||
| LTB10-40 | 25-40 | 290-580 | 34,7 | 73 | 125 | 7,5 | 10 | 1184 | ||
| LTB15-40 | 48,5 | 103 | 174 | 11 | 15 | 802 | ||||
| LTB20-40 | 63,8 | 135 | 229 | 15 | 20 | 1205 | ||||
| LTB25-40 | 77,5 | 164 | 278 | 18,5 | 25 | 1003 | ||||
| LTB30-40 | 94,2 | 199 | 338 | 22 | 30 | 1173 | ||||
| LTB40-40 | 124,8 | 264 | 448 | 30 | 40 | 1564 | ||||
Notes：
*FAD is 36.9 l/s, 78 CFM and 133 m3/hr @60 HZ
FAD is based on max inlet pressure & max outlet pressure
FAD is tested based on ISO 1217 Ed4 2009 (Ambinet temperature 20 ℃, and relative Humidity 0%)
bstAIR 40 Series
