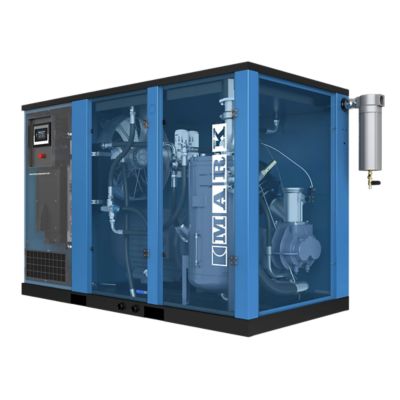

The RME Fixed Speed compressors are available in 90 kW and 110 kW configurations, offering Free Air Delivery up to 327 l/s. Operating pressures range from 7.5 to 13 bar, with noise levels between 71 and 78 dB(A). Air-cooled and water-cooled options ensure flexibility for diverse environments. Dimensions start at 2270 x 1200 x 1600 mm, with weights from 1566 to 2090 kg, ensuring a compact footprint for high-capacity performance.
Advanced design for maximum performance
The Mark RME Fixed Speed range combines cutting-edge engineering with proven reliability. Its asymmetric screw element profile and precision bearings minimize wear, delivering consistent air output and extended service life. The integrated air-water separator and aftercooler ensure superior air quality while reducing condensate risks.
Equipped with Super Premium Efficiency IE4 motors, these compressors optimize energy use without compromising power. The intuitive touch controller enhances connectivity and operational insight, allowing users to monitor performance and schedule maintenance proactively. Designed for simplicity, the RME series guarantees easy installation and minimal upkeep.
Mark emphasizes CARE, TRUST, and EFFICIENCY in its service philosophy. Regular maintenance using original parts ensures peak performance and extended equipment life. The intuitive controller provides service alerts and scheduling, reducing downtime and optimizing operational costs. With easy access panels and minimal moving parts, maintenance is straightforward and cost-effective.
Technical informations
- RME 90
- RME 110
| Model | Frequency | Max working pressure | Reference working pressure | Free air delivery @ reference conditions | Motor power | Noise level | Cooling air volume | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Hz | bar(g) | bar(g) | m³/h | l/s | cfm | kW | Hp | dB(A) | m³/h | |
| RME90 | 50 | 7,5 | 7 | 1020 | 283 | 601 | 90 | 120 | 72 | 15336 |
| 8,5 | 8 | 976 | 271 | 574 | 90 | 120 | 71 | 15336 | ||
| 10 | 9,5 | 901 | 250 | 530 | 90 | 120 | 73 | 15336 | ||
| 13 | 12,5 | 760 | 211 | 448 | 90 | 120 | 71 | 15336 | ||
| 60 | 6,9 | 7 | 1058 | 294 | 623 | 90 | 120 | 72 | 15336 | |
| 8,6 | 8 | 951 | 264 | 559 | 90 | 120 | 72 | 15336 | ||
| 10,3 | 9,5 | 872 | 242 | 513 | 90 | 120 | 71 | 15336 | ||
| 12 | 12,5 | 759 | 211 | 447 | 90 | 120 | 71 | 15336 | ||
| Model | Cooling | FAD (l/s) | Power | Noise Level | |||
|---|---|---|---|---|---|---|---|
| 7 bar | 8 bar | 10 bar | 13 bar | kW/Hp | db(A) | ||
| RME 110 | Air-Cooled | 327 | 308 | 265 | 224 | 110/150 | 78 |
| RME 110 | Water-Cooled | 327 | 308 | 265 | 224 | 110/150 | 76 |
The values in the table are determined in accordance with ISO 1217 3rd edition 2010 standards.
